Circuits Overview

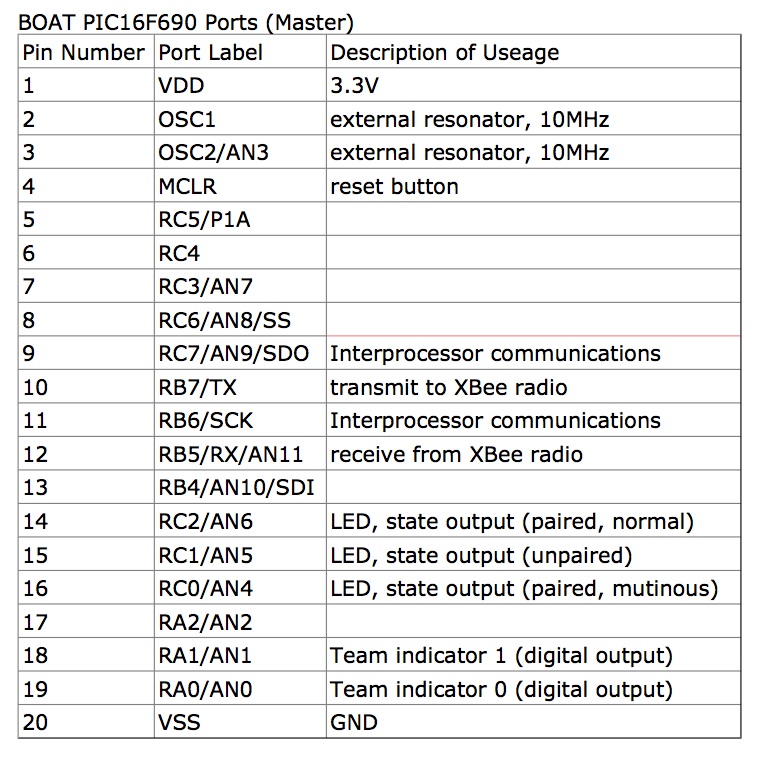

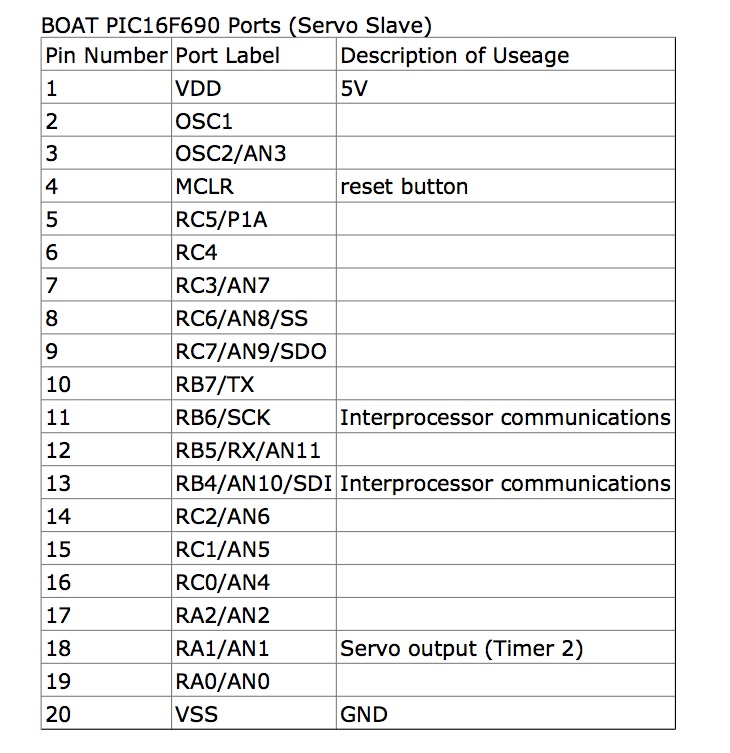

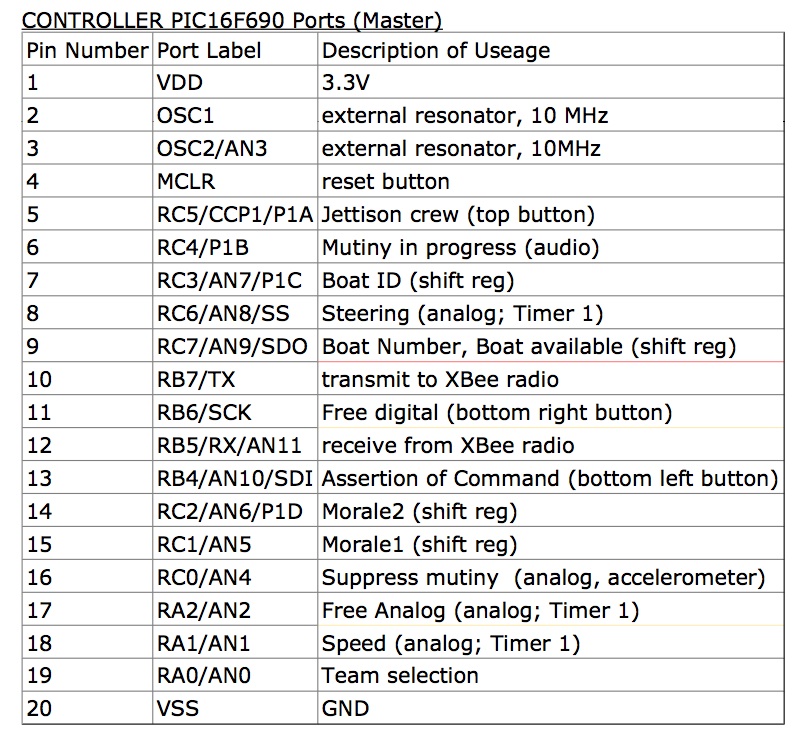

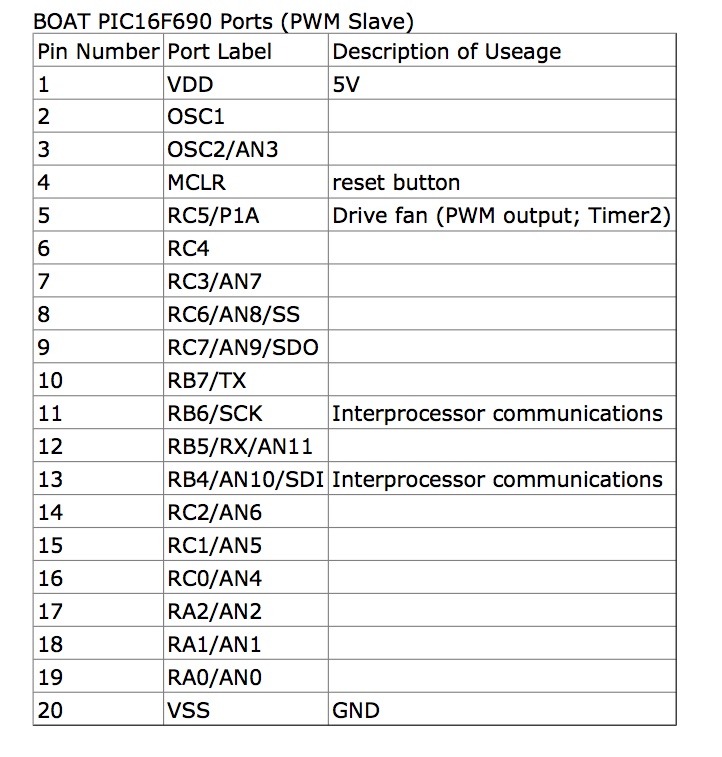

The different circuits for our COACH and TOWRP are detailed on the pages below. You can download a zip of all the DXP files here. Both COACH AND TOWRP were exclusively controlled by the PIC6F690, and coded in assembly. The pinouts are listed in the following table.
