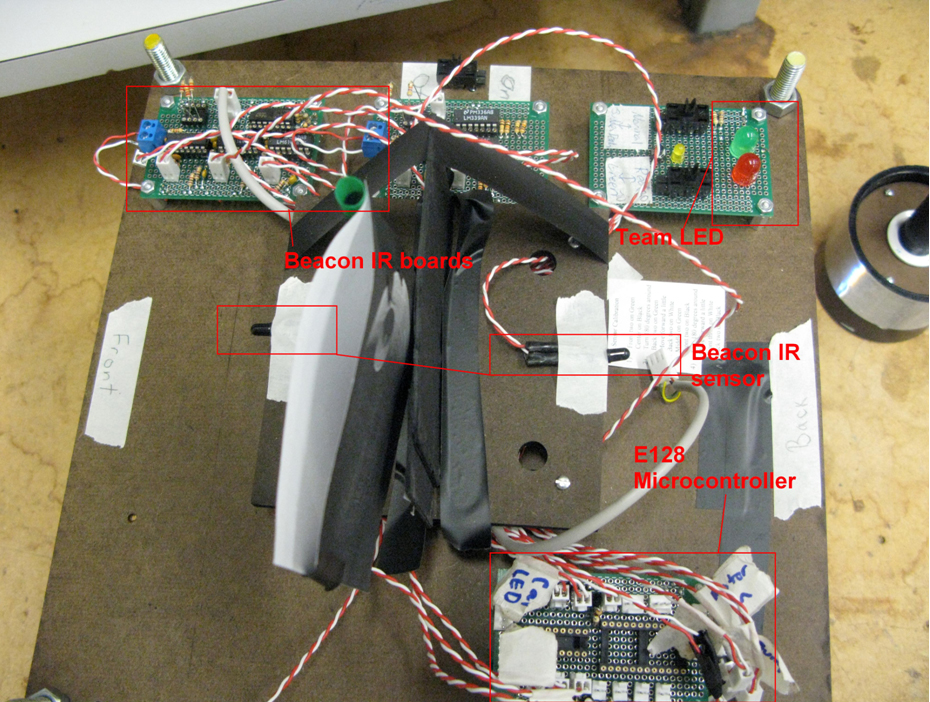

Beacon and uC level
Solidworks of the beacon and uC level

The topmost level of the Death Star, sitting at 11’’ is home to the beloved E128, a soldered flag-IR circuit, a microcontroller connection board, and two beacon-seeking directional IR sensors.
