LOBBYIST Source Code Listings

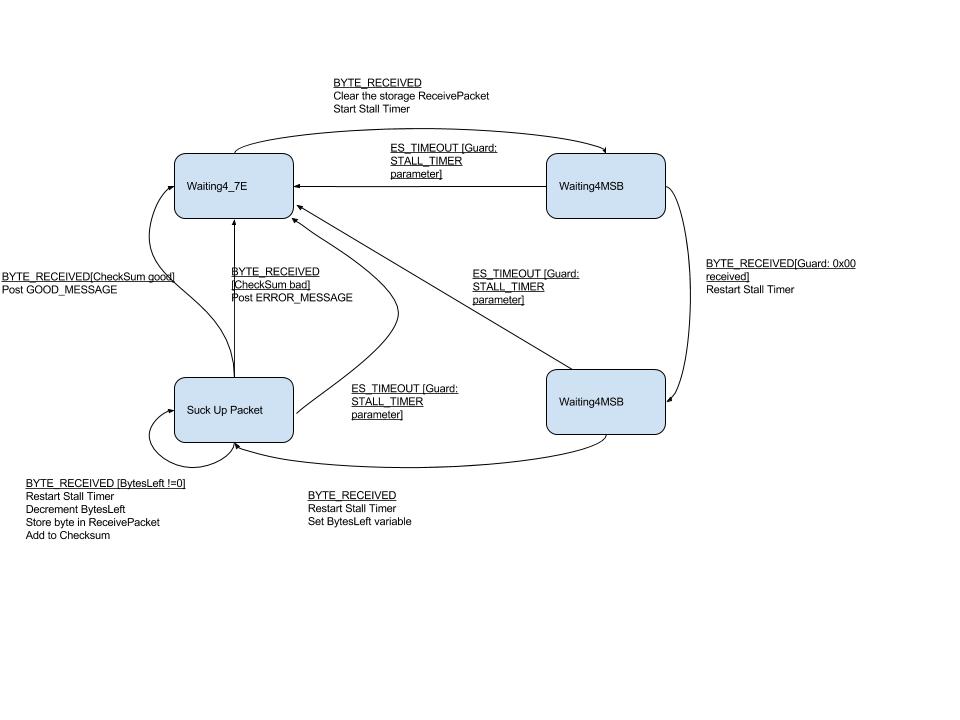

lobbyistcommunication contains the uart initialization and details of how the lobbyist sends and receives data
|
processreceive processes the data that was received and gives actions to the LOBBYIST based on the data
|
propmodule contains the functions to make the LOBBYIST move forward or backwards, turn, and stop
| ||||||
liftdanmodule contains the functions to turn the lift fan on and off using pwm
|
toggleledservices toggles an LED faster as the 45 seconds time limit is reached (this is an added feature to the DMC)
|
pwmmodule contains all the pwm initializations and the function for setting the duty cycle for the props and lift fan
| ||||||
admulti is a library provided that takes in analog readings
|
dmcmodule contains the functions that send data to the PIC that is used as the main controller for the DMC
|
dmc_code is the code used on the PIC12F752 that allows the DMC to control a servo motor and light up LEDs depending on the state of the LOBBYIST
| ||||||
LOBBYIST Header Files
|
|
| ||||||
|
|
| ||||||
|
|
| ||||||

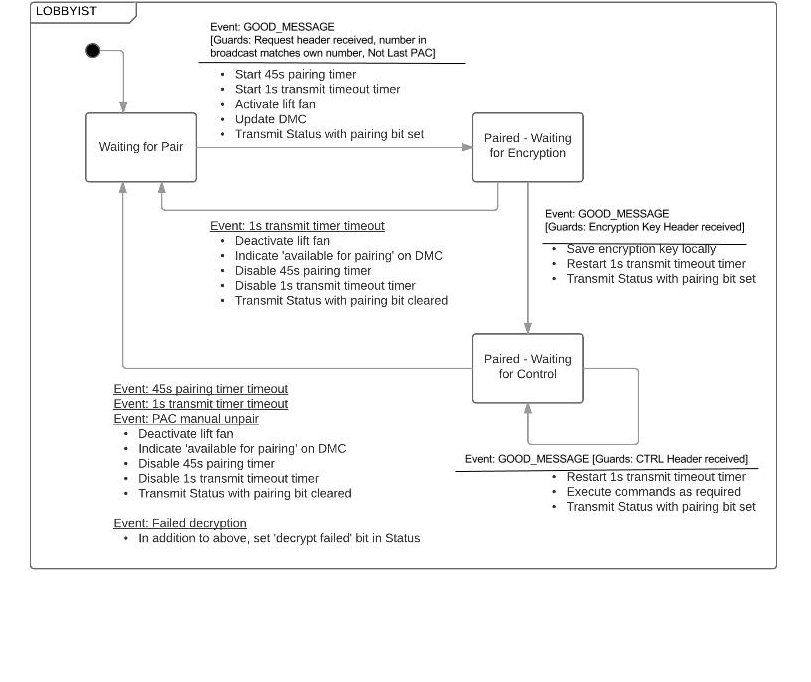

LOBBYIST State Chart
|
