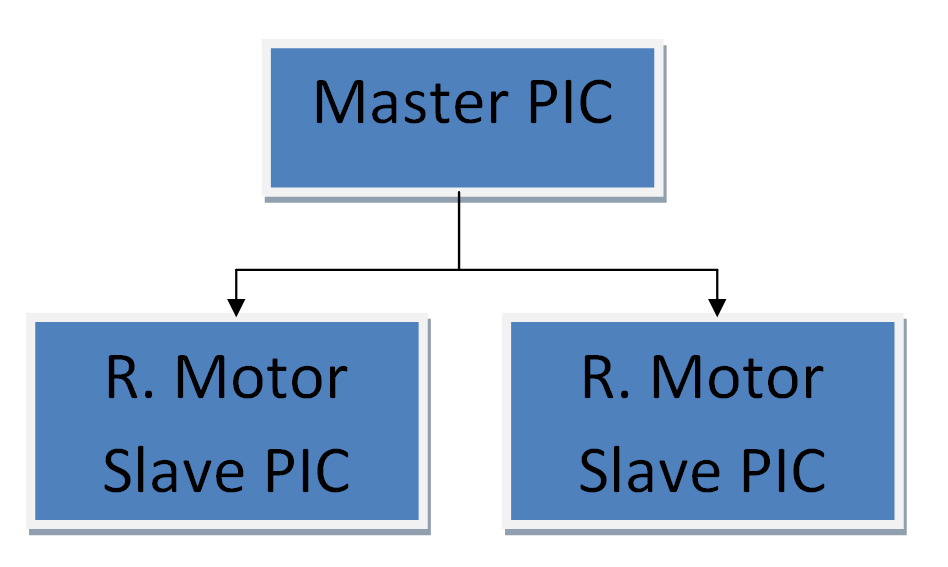

There are two sub sections of communications for the PIC processors. First, is the SPI communications protocol.
SPI
Pseudocode
Initialize SPI
Turn of collision detect bit
No Receive overflow bit
SPI mode
Idle state for clock is a low level
SPI Master Mode, clock Fosc/64
Input data sampled at middle of data output time
Data transmitted rising edge of SCK
Send a test byte
Transmit_SPI (Precondition of TX_SPI_DATA must contain the SPI byte to be sent)
Loop until the last byte is finished transmitting
Put the data to be sent in the SPI buffer
XBee

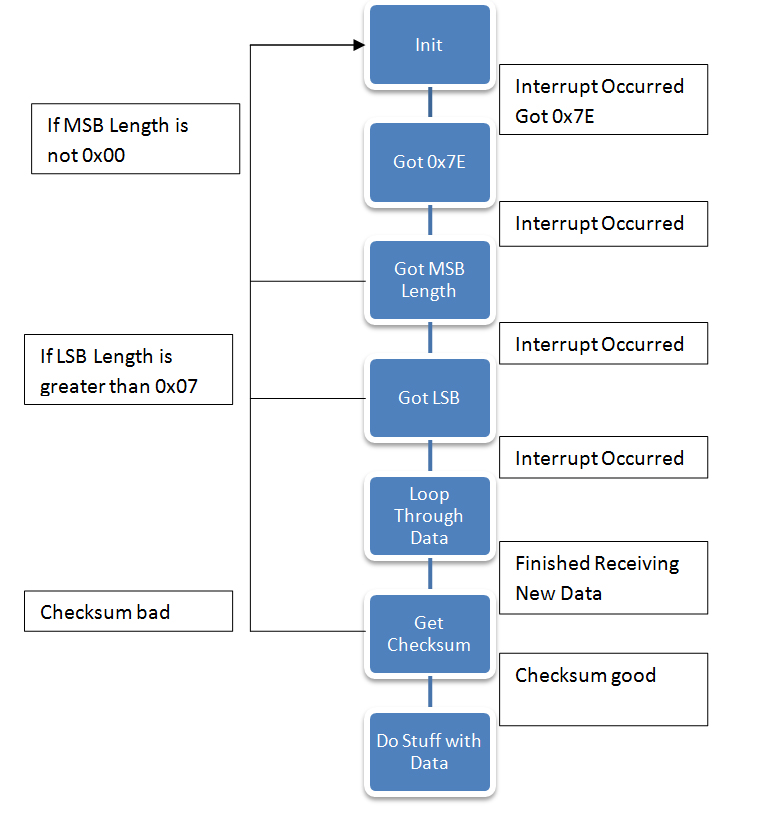

The second communications protocol on the TOWRP is the XBee communications. Although more information of the XBee communications protocol can be found in the state machine subsection, a receiver state machine had to be created that deciphers the incoming messages from a COACH.
Pseudocode
HANDLE_MSG
Save the received data
Goto the current state in SWITCH_DECISION
SWITCH_DECISION
Find out what state to go to and go to it
STATE_PACKET_START
If the message is a 7E
Set the current state to STATE_LENGTH_MSB
Else
Do nothing
STATE_LENGTH_MSB
If the message is 0
Do Nothing
Else
Set the current state to STATE_LENGTH_LSB
STATE_LENGTH_LSB
Set i =Length
Set j = length
If the length is > 7
Get rid of the message
Else
Set the current state to STATE_GET_DATA
STATE_GET_DATA
Get the memory location of the packet array
Find out where in the array to put the new item
Get the current data
Store it in the array
Decrement our current I placement
If we are at the end of i
Set the current state to STATE_CHECK_SUM
STATE_CHECK_SUM
Store the length of LSB into a temp value
Read every array value and sum them up
0xFF-SumOfValues
If the checksums are the same
Increment the state
Else
Reset the state machine
EVALUATE_DATA
Check to see if the data is a received data
If it is a message from another XBee, Handle it
If it is a status message, handle it
Else, Do nothing
