Mississippi Queen

COACH
Mechanical
Electrical
Software

Click to Enlarge

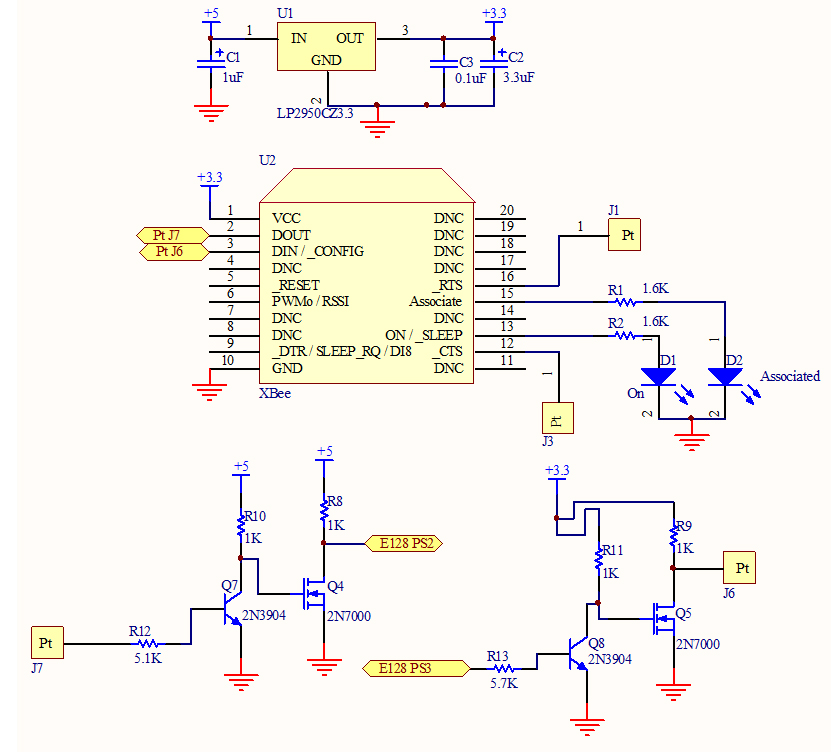

Coach XBee Board Schematic

Steering Throttle Display Interactive Sensors

Xbee Board Seven-Segment Displays Display Steering Throttle Bell and Microphone Power Board Miscellaneous 8-Hour Power Calculation

Communications State Machine Seven-Segment Displays Display Steering Throttle Bell and Microphone Miscellaneous

The COACH Xbee board came preassembled to us, equipped with two level shifters. The IN and OUT were connected directly to two different ports on the E128.
